Built for controlled HDD pulling operations, the DRILLNOVA HDD Pulling Eye provides a compact, secure attachment point between a threaded drill-string connection and an approved shackle, cable, swivel or pulling assembly. Connection, eye geometry and load requirements are engineered to the application.

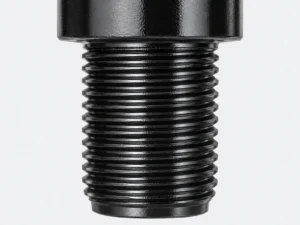

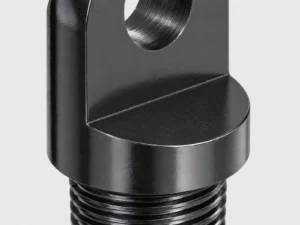

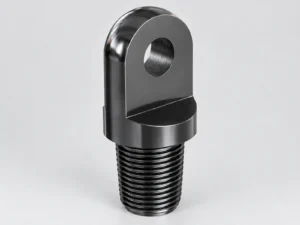

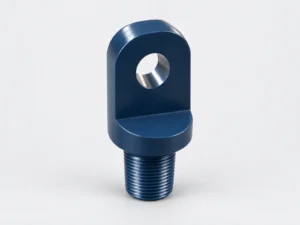

The DRILLNOVA HDD Pulling Eye converts a compatible threaded tool connection into a practical eye attachment point. Its compact one-piece form supports aligned load transfer during approved pullback and handling operations. Thread form, eye size and body dimensions are selected for the drill string, mating hardware and project load.
The pulling eye does not replace a swivel. Where rotational isolation is required, use a properly selected and rated swivel assembly. Final working load must be established from the approved drawing, material specification and applicable verification—not from product appearance or thread size alone.
Review standard Diamond Compact PDC Bit configurations below. Final dimensions and connections are confirmed during application review.
Confirm matching threads, full engagement, approved make-up procedure and compatible eye hardware before applying load.

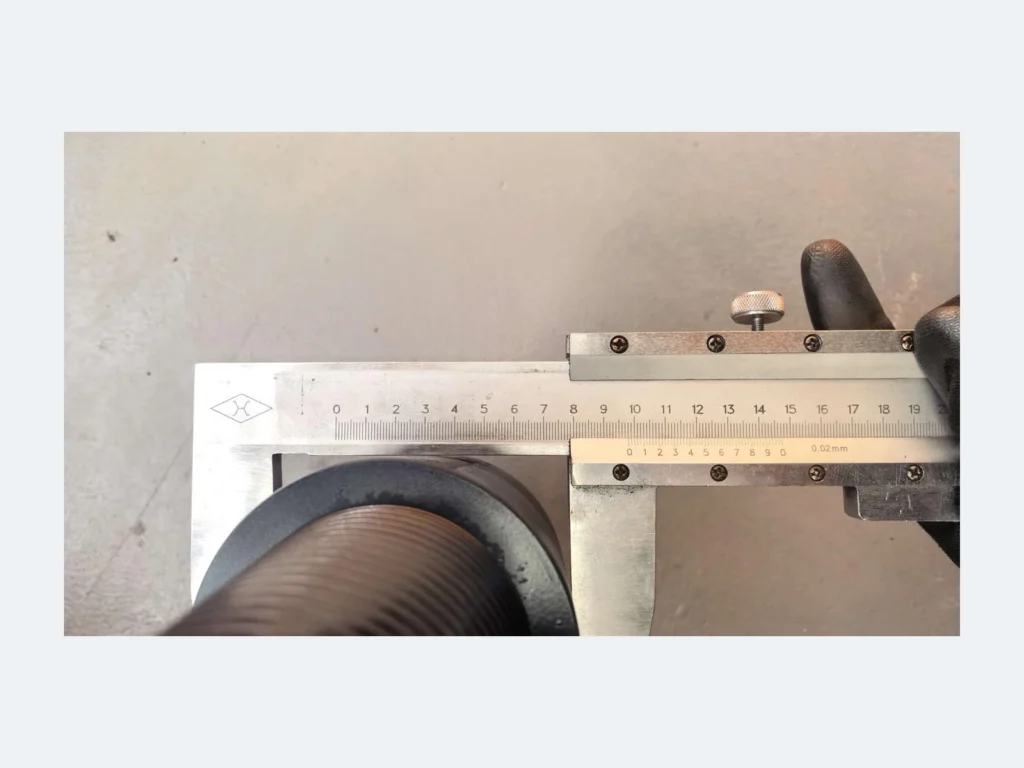

Inspect the eye, body and thread for cracks, deformation, elongation, corrosion, galling or abnormal wear before every use.
Protect the thread and eye from impact and contamination. Clean, preserve and fit a thread protector for storage.
It provides a threaded eye attachment point for connecting compatible HDD drill strings or downhole tools to an approved shackle, cable, swivel or pulling assembly.
Confirm the exact mating thread, attachment-hardware dimensions, expected load, load direction, available clearance and operating procedure. DRILLNOVA should review these details before confirming the drawing.
API REG, API IF and project-specific connections can be reviewed. The exact thread designation, pin or box orientation, reference standard and mating component must be stated with the enquiry.
No. A pulling eye provides an attachment point but does not inherently isolate rotation. Use an engineered, correctly rated swivel where rotational isolation is required.
It depends on the material, heat treatment, geometry, thread, attachment method, load direction and verification requirements. Use only the value stated in the approved engineering or test documentation.
Not unless the exact unit has been separately engineered, tested, marked and certified for that lifting application under the applicable regulations. A standard HDD pulling eye must not be assumed to be lifting equipment.

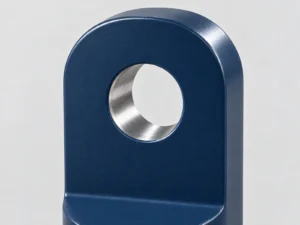

Check the eye for elongation or deformation, the body for cracks or corrosion, and the thread for wear, galling or damage. Remove any questionable component from service for qualified evaluation.
Yes. Connection, eye opening, overall length, body diameter, material, heat treatment, finish, marking and verification requirements can be reviewed for the application.
Share the mating thread, pulling hardware, required load, operating direction and available space. DRILLNOVA will review the configuration and confirm the required drawing and documentation.
